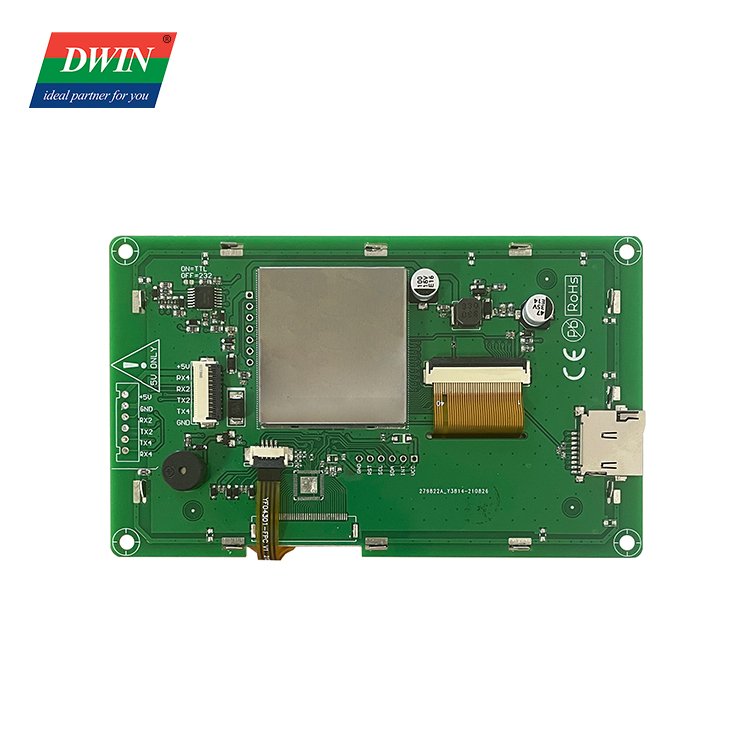

DWIN 4.3″ Touch TFT LCD Display (Capacitive Touch) – DMG48270C043_05WTC
The DWIN DMG48270C043_05WTC is a commercial-grade 4.3-inch intelligent HMI display based on the DWIN T5L0 ASIC. It features 480×272 resolution, Capacitive Touch Panel (CTP) with Asahi tempered glass (6H hardness), 270 nit brightness, 16MB NOR Flash, and dual UART communication.
Product Overview
The DWIN DMG48270C043_05WTC is a commercial-grade 4.3-inch intelligent HMI display based on the DWIN T5L0 ASIC. It features 480×272 resolution, Capacitive Touch Panel (CTP) with Asahi tempered glass (6H hardness), 270 nit brightness, 16MB NOR Flash, and dual UART communication.
Key Features
- Display: 4.3" TV-TN, TFT LCD with 480×272 resolution and 18-bit (262K) color reproduction.
- Touch System: Capacitive (CTP) engineered for industrial and commercial human-machine interfaces.
- Controller: Powered by DWIN T5L0 ASIC running DWIN DGUS II intelligent GUI architecture.
- Optical Performance: 270 nit brightness rating with 70°/70°/40°/30° (L/R/U/D) viewing angles.
- Operating Reliability: Wide operating temperature range of -20℃~70℃ at 4.5~5.5V (Typical 5V).
Technical Specifications
| Model Number / SKU | DMG48270C043_05WTC |
|---|---|
| Display Size | 4.3" |
| Resolution | 480×272 |
| LCD Type | TV-TN, TFT LCD |
| Touch Type | Capacitive (CTP) |
| Color Depth | 18-bit (262K) |
| Viewing Angle | 70°/70°/40°/30° (L/R/U/D) |
| Brightness | 270 nit |
| Operating Voltage | 4.5~5.5V (Typical 5V) |
| Operating Temperature | -20℃~70℃ |
| Controller / ASIC | DWIN T5L0 ASIC |
| Interface | 10Pin_1.0mm (UART2/UART4) |
| Flash Memory | 16MB NOR Flash |
| Active Area (A.A) | 95.04mm (W) × 53.86mm (H) |
| Touch Structure | G+G structure with surface cover of Asahi tempered glass |
| Surface Hardness | 6H |
| Light Transmittance | Over 90% |
| Operating Current | Backlight on: 210mA (CTP), Backlight off: 70mA (at 5V) |
| Baud Rate | 3,150 ~ 3,225,600 bps |
| Peripherals | Built-in 3V passive buzzer, SD interface (FAT32), PGT05 kernel recovery interface |
Development & Software Information
The display utilizes DWIN DGUS II GUI development platform. Users can design graphical user interfaces including buttons, text displays, sliders, real-time curves, and alarms via the DGUS software without extensive coding. Firmware, images, fonts, and audio assets can be easily downloaded using a standard FAT32-formatted SD card or via serial communication.
