DWIN 3.5″ Smart LCM TFT LCD Display (Resistive Touch) – DMG48320C035_03WTR

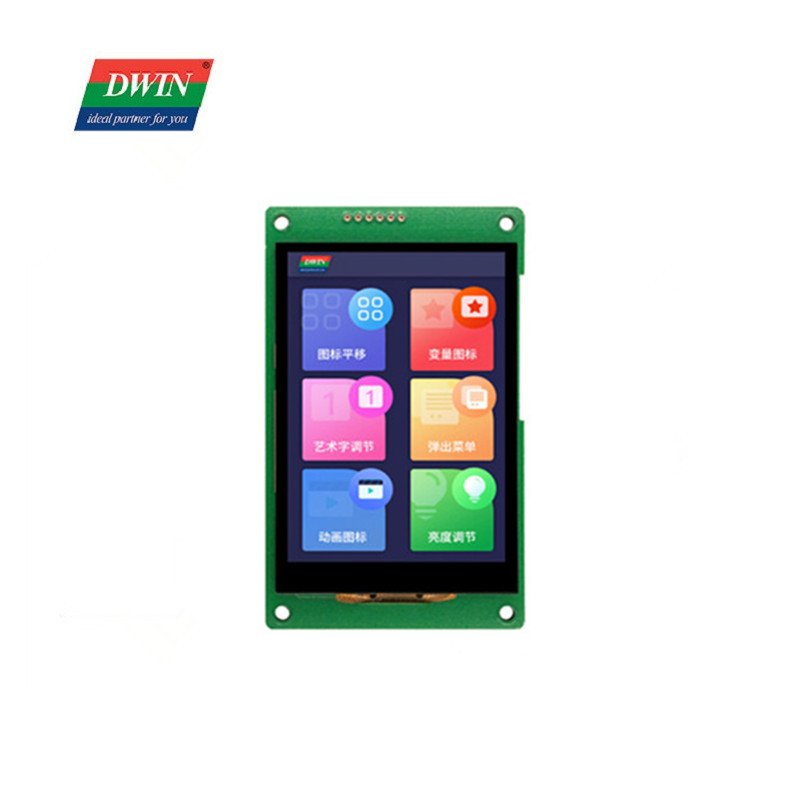

The DWIN DMG48320C035_03WTR is a 3.5-inch commercial-grade smart LCM TFT LCD module running on the DWIN T5L ASIC. It provides 320×480 resolution, 16.7M colors, wide 85° IPS viewing angles, 4-wire Resistive Touch Panel (RTP), 220 nit brightness, and dual UART communication.
Product Overview
The DWIN DMG48320C035_03WTR is a 3.5-inch commercial-grade smart LCM TFT LCD module running on the DWIN T5L ASIC. It provides 320×480 resolution, 16.7M colors, wide 85° IPS viewing angles, 4-wire Resistive Touch Panel (RTP), 220 nit brightness, and dual UART communication.
Key Features
- Display: 3.5" IPS, TFT LCD with 320×480 resolution and 24-bit (16.7M) color reproduction.
- Touch System: Resistive (RTP) engineered for industrial and commercial human-machine interfaces.
- Controller: Powered by DWIN T5L1 ASIC running DWIN DGUS II intelligent GUI architecture.
- Optical Performance: 220 nit brightness rating with Wide viewing angle (85°/85°/85°/85°) viewing angles.
- Operating Reliability: Wide operating temperature range of -20℃~70℃ at 4.5~5.5V (Typical 5V).
Technical Specifications
| Model Number / SKU | DMG48320C035_03WTR |
|---|---|
| Display Size | 3.5" |
| Resolution | 320×480 |
| LCD Type | IPS, TFT LCD |
| Touch Type | Resistive (RTP) |
| Color Depth | 24-bit (16.7M) |
| Viewing Angle | Wide viewing angle (85°/85°/85°/85°) |
| Brightness | 220 nit |
| Operating Voltage | 4.5~5.5V (Typical 5V) |
| Operating Temperature | -20℃~70℃ |
| Controller / ASIC | DWIN T5L1 ASIC |
| Interface | 10Pin_1.0mm (UART2/UART4) |
| Flash Memory | 16MB NOR Flash |
| Active Area (A.A) | 49.00mm (W) × 73.40mm (H) |
| Backlight | LED |
| Operating Current | Backlight on: 130mA, Backlight off: 40mA (at 5V) |
| Baud Rate | 3,150 ~ 3,225,600 bps |
| Peripherals | Built-in buzzer, SD interface (FAT32), PGT05 kernel recovery interface |
Development & Software Information
The display utilizes DWIN DGUS II GUI development platform. Users can design graphical user interfaces including buttons, text displays, sliders, real-time curves, and alarms via the DGUS software without extensive coding. Firmware, images, fonts, and audio assets can be easily downloaded using a standard FAT32-formatted SD card or via serial communication.
| Display Size | 93 |
|---|---|
| Resolution | 94 |
| Touch Type | 91 |
| LCD Type | 95 |
| Color Depth | 96 |
| Viewing Angle | 97 |
| Brightness | 99 |
| Operating Voltage | 86 |
| Operating Temperature | 87 |
| Controller / ASIC | 88 |
| Interface | 89 |
| Flash Memory | 90 |
