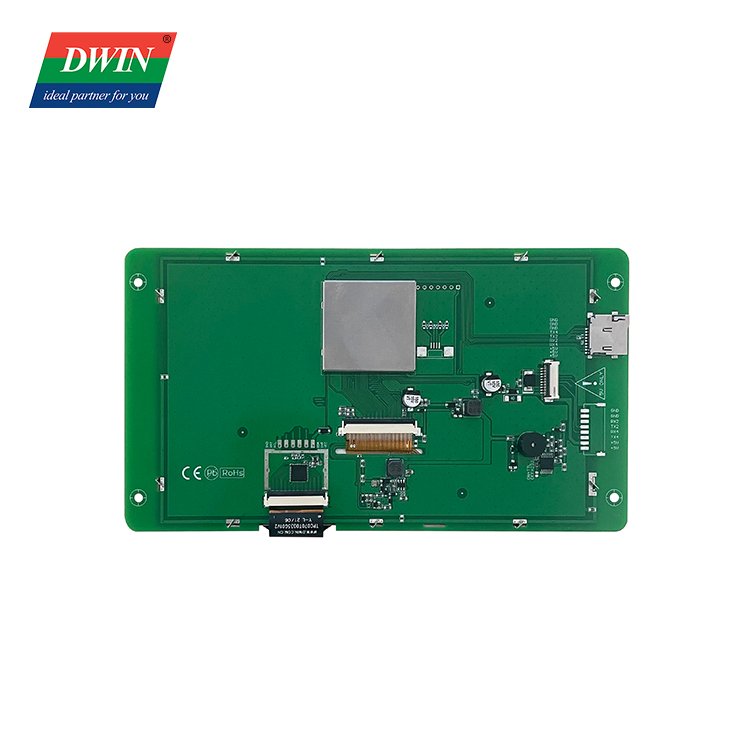

DWIN 7.0″ HMI TFT LCD Display (Resistive Touch) – DMG80480C070_04WTR
The DWIN DMG80480C070_04WTR is a commercial-grade 7.0-inch human-machine interface (HMI) display based on the DWIN T5L ASIC running DGUS II. It features 800×480 resolution, wide 85° IPS viewing angles, 16.7M colors, 4-wire Resistive Touch Panel (RTP) with 3H surface hardness, and 250 nit brightness.
Product Overview
The DWIN DMG80480C070_04WTR is a commercial-grade 7.0-inch human-machine interface (HMI) display based on the DWIN T5L ASIC running DGUS II. It features 800×480 resolution, wide 85° IPS viewing angles, 16.7M colors, 4-wire Resistive Touch Panel (RTP) with 3H surface hardness, and 250 nit brightness.
Key Features
- Display: 7.0" IPS, TFT LCD with 800×480 resolution and 24-bit (16.7M) color reproduction.
- Touch System: Resistive (RTP) engineered for industrial and commercial human-machine interfaces.
- Controller: Powered by DWIN T5L0 ASIC running DWIN DGUS II intelligent GUI architecture.
- Optical Performance: 250 nit brightness rating with Wide viewing angle (85°/85°/85°/85°) viewing angles.
- Operating Reliability: Wide operating temperature range of -20℃~70℃ at 4.5~5.5V (Typical 5V).
Technical Specifications
| Model Number / SKU | DMG80480C070_04WTR |
|---|---|
| Display Size | 7.0" |
| Resolution | 800×480 |
| LCD Type | IPS, TFT LCD |
| Touch Type | Resistive (RTP) |
| Color Depth | 24-bit (16.7M) |
| Viewing Angle | Wide viewing angle (85°/85°/85°/85°) |
| Brightness | 250 nit |
| Operating Voltage | 4.5~5.5V (Typical 5V) |
| Operating Temperature | -20℃~70℃ |
| Controller / ASIC | DWIN T5L0 ASIC |
| Interface | 10Pin_1.0mm (UART2/UART4) |
| Flash Memory | 16MB NOR Flash |
| Touch Structure | ITO film + ITO glass |
| Surface Hardness | 3H |
| Light Transmittance | Over 80% |
| Touch Durability | Over 1,000,000 touches |
| Storage Temperature | -30℃ to +80℃ |
| Secondary Development | DWIN DGUS II system |
Development & Software Information
The display utilizes DWIN DGUS II GUI development platform. Users can design graphical user interfaces including buttons, text displays, sliders, real-time curves, and alarms via the DGUS software without extensive coding. Firmware, images, fonts, and audio assets can be easily downloaded using a standard FAT32-formatted SD card or via serial communication.
